The FEU3543 and FED3543 upconverters and downconverters support transmission and reception over a frequency range of 9 kHz to 43 GHz. They can be integrated with the SGR RF transceiver to build wideband signal generation and analysis systems covering an even broader frequency range.
Additionally, the upconverters and downconverters support external LO signal input, making them suitable for applications requiring high phase synchronization, such as MIMO.

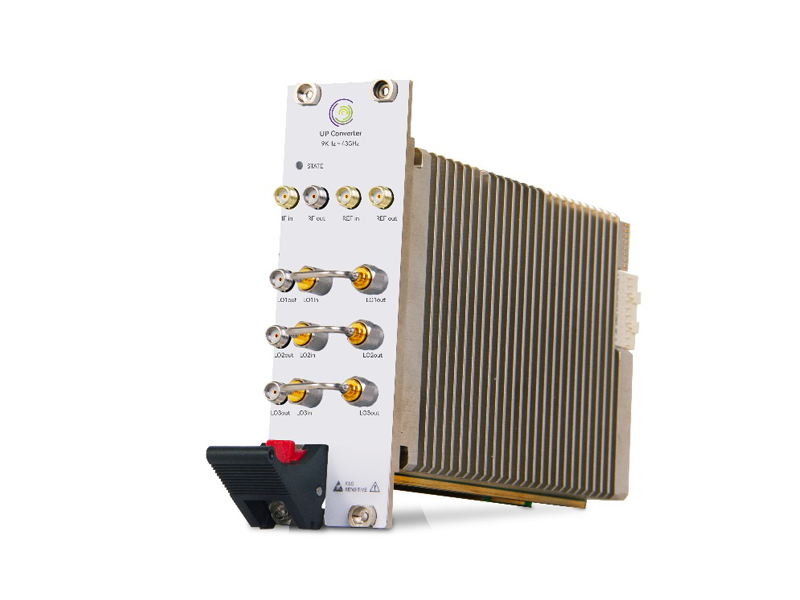

The converters feature a compact modular design that ensures high performance while providing better adaptability for highly integrated and complex applications.
Product Model |
FED3543 |
| Downconverter IF Output Signal | |
|
IF Output Frequency
|
1875±500MHz
|
|
IF Output Power
|
0dBm
|
|
Gain Range
|
-35dB~25dB (Normal Mode)
-15dB~45dB (Low Noise Mode)
|
| Gain Flatness | 0±1.5dB |
| Conversion Spurious | ≤-60dBc |
| Image Rejection | ≥60dB |
| Downconverter Input Signal Requirements | |
|
Input Signal Frequency
|
9K~43000MHz
|
|
Input Signal Power
|
15dBm;(MAX)
|
| Local Oscillator (LO) | |
|
LO Phase Noise
|
≤-104dBc/Hz@10KHz
|
|
LO Step Size
|
10MHz
|
| Reference Clock | |
|
Reference Clock Frequency
|
10MHz
|
|
Output Power
|
9±1dBm
|
|
Frequency Stability
|
0.05ppm
|
|
Conversion Module Power Consumption
|
42W
|
Product Model |
FEU3543 |
|
Upconverter IF Input Signal
|
|
|
IF Input Frequency
|
1875±500MHZ
|
|
IF Input Power
|
-5dBm
|
|
Upconverter Output Signal
|
|
|
Output Signal Frequency
|
9K~43000MHz |
|
Output Signal Power
|
15dBm;(MAX) |
|
Gain Range
|
-10dB~20dB |
|
Gain Flatness
|
0±2.5dB |
|
Conversion Spurious
|
≤-60dBc |
|
Image Rejection
|
≥60dB
|
|
Conversion Local Oscillator (LO)
|
|
|
LO Phase Noise
|
≤-104dBc/Hz@10KHz
|
|
LO Step Size
|
10MHz
|
| Reference Clock | |
|
Reference Clock Frequency
|
10MHz
|
| Output Power | 9±1dBm |
| Frequency Stability | 0.05ppm |
| Conversion Module Power Consumption | 42W |
