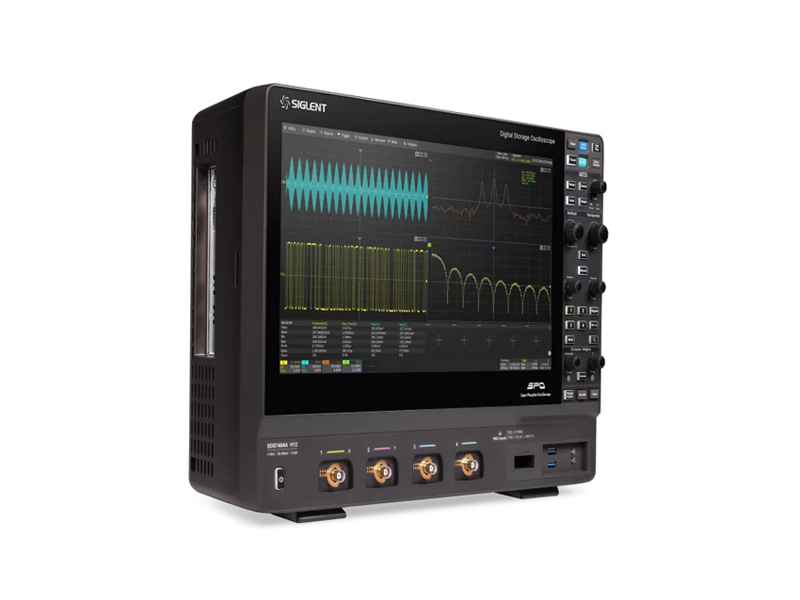

SIGLENT digital oscilloscopes provide the perfect balance between features and price. With bandwidths from 50 MHz to 4 GHz, low noise vertical scales down to 500 uV/div, and features like Compliance Test, Eye diagram / Jitter analysis, serial decoding and MSO capabilities, SIGLENT will quickly become your scope of choice.
Event frequency indicated by color temperature. “Hot” colors (red) identify frequent events while “cool” (blue) colors are reserved for events that occur less often.
Quickly add one of over 30 automatic measurements like peak voltage, frequency, and more
Edge, Slope, Pulse, Window, Runt, Interval Dropout, Pattern, Video (HDTV supported), and serial trigger modes on many of our digital oscilloscopes
S – Standard, included
O – Optional
| Feature | SDS2000X-E | SDS2000X Plus | SDS2000X HD | SDS5000X | SDS6000A |
|---|---|---|---|---|---|
| ADC per analog input | S | ||||
| Bode Plot/Frequency Analysis (1) | S | S | S | S | S |
| Measurement Histogram/Trending | S | S | S | S | |
| Probe adapters (TPA10/Tek) | O | O | |||
| Serial Decoding (RS232/UART, CAN/LIN, SPI, I2C) | S | S | S | S | S |
| 10-bit resolution mode | S | ||||
| 12-bit ADC resolution | S | ||||
| 10 MHz in/out | S | ||||
| Web browser remote control | S | S | S | S | S |
| Zone triggers | S | S | S | S | |
| AWG/Function Generator (2) | O | O | O | O | O |
| Bandwidth Upgrades | O | O | O | O | |
| Eye Diagram/Jitter Analysis | O | ||||
| Mixed Signal/MSO/Digital Logic | O | O | O | O | O |
| Power Analysis | O | O | O | O | |
| Optional Serial Decoding (CAN-FD, MIL-1553B, I2S, Flexray, SENT, Manchester) |
O | O | O | O | |
| Touchscreen Display | S | S | S | S |
