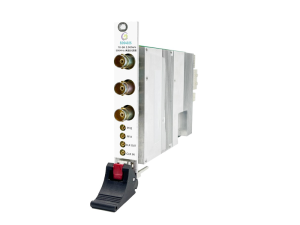

The SGR series PXIe RF vector signal transceiver module integrates the functions of RF wideband vector signal reception and generation. With high integration and flexibility in usage, it supports PXIe system modular reconfigurable configurations.
The frequency range covers 300MHz to 8GHz, with a maximum instantaneous signal bandwidth of up to 1GHz. It features versatile general modulation and demodulation capabilities, as well as 3GPP standard communication modulation and demodulation functionalities. Optional hardware modulation and demodulation capabilities are available, providing the required performance to rapidly and efficiently address RF chip testing challenges both now and in the future.
RF Input Performance |
RF Output Performance |
||
|
Frequency Range
|
300MHz~8GHz
|
Frequency Range
|
300MHz~8GHz
|
|
Channel Qty
|
1 |
Channel Qty
|
1 |
|
Maximum Instantaneous
Bandwidth
|
1GHz
|
Maximum Instantaneous
Bandwidth
|
1GHz
|
|
Maximum Input Power
|
+30dBm
|
Maximum Output Power
|
+25dBm
|
|
Input Impedance
|
50Ω
|
Output Impedance
|
50Ω
|
|
Coupling Method
|
AC
|
Coupling Method
|
AC
|
|
Output EVM
|
≤-40dB
|
||
