Vision, Dexterity and Distractions continually limit the effectiveness and reliability of diagnostic measurements. Technicians and engineers equipped with the most advanced test instruments still have to locate the test point, place the probe, take the measurement and record the measurement. Maintaining focus throughout the entire process is difficult especially when
many test points are involved. These issues can be addressed by defining an effective test strategy that involves automation.

Request For Quote Or
Whatsapp Now

Description

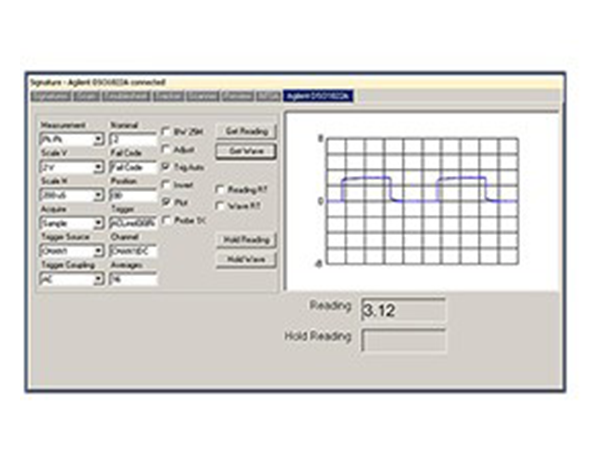

The Huntron Workstation Software Development Kit (SDK) provides a method for integrating control of instruments to the Huntron Workstation software and use with Huntron Access Probers. The Huntron Workstation software can move the prober to a location, control the instrument(s), display data, make comparisons and show results. The SDK supports numeric measurements, waveforms and images. The integration is performed creating/modifying a .NET DLL. The combination of the Huntron Workstation software, Huntron Access Probers, other instruments and the customized DLL create a fast and easy way to create effective custom prober systems. The SDK supports 3 numeric measurements, a waveform and an image for each test range. The settings for obtaining the data are customizable windows controls consisting of 6 drop down list boxes, 6 text boxes and 6 check boxes. The text of the labels for the controls is set in the DLL. The values in the drop downs are also set in the DLL. In addition there is a delay field for delaying the measurement after the probe has made contact and +/- tolerance fields for comparison.

Features

  • Your test instrumentation is integrated into Huntron Workstation
  • Provides the ability to capture, store and compare good versus bad measurements
  • Share tests with other facilities that use the same system
  • Save on application development
  • Takes advantage of test instruments that have effective software driver support
  • Create an automated test platform with reduced development resources
  • Test development is fast and easy
  • Take advantage of Workstation improvements developed by Huntron

Automation Solution to Meet Your Needs

Huntron Workstation software used with Access Probers help you to automate test measurements that are difficult to perform
using manual methods. Huntron offers three different developer options to assist you with your automated test integration.

  • Huntron Remote Control: Create your own test executive that controls your selected test instrumentation and sends commands to Huntron Workstation running “remotely” in the background. Huntron Workstation manages the test point database and Prober controls to help you automate your test process with minimal programming.
  • Huntron Workstation SDK: Integrating your test instrument directly into Huntron Workstation allows you to manage the
    test point and measurement database, compares to expected measurements and documents test results.
  • Huntron Hardware SDK: Huntron provides the DLL files, documentation and source code for sample applications to assist
    you in developing your own custom application.
